Su ubicación actual：> >> PRODUCTS >> Universal Balancers >> Cross Flow Fan Balancer
Self-driven Cross Flow Fan Balancer
Describir Parámetro Foto Vídeo Descargar Cotización
Application

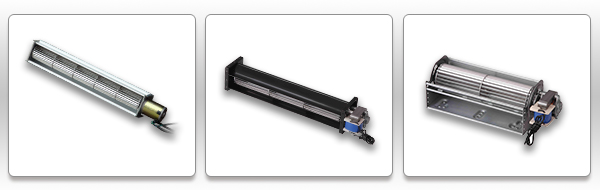

It is suitable for the overall balancing of the workpieces like cross-flow fan.
Features
1. The fixture is convenient for workpiece loading and unloading
2. The hard-bearing bracket system designed by Jianping reduces the failure rate
3. Modular design, applied to the overall balancing of workpieces such as cross-flow fan blades
PHG-5 Cross Flow Fan Balancing Machine
| Technical data at a glance | PHG-5 |
| Max Mass of Workpiece (kg) | 5 |
| Max Diameter of Workpiece (mm) | 150 |
| The distance between two bearing pedestals | Min 60-900 |
| Length of workpiece(mm) | 900 |
| Journal diameter on roller carriages | Φ5~12 |
| Spindle speed(r/min) | 1470 stepless speed regulation |
| Motor power(kw) | 0.2DC |
| Min Achievable Residual Unbalance Amount (emar) | 0.5g· mm/kg |

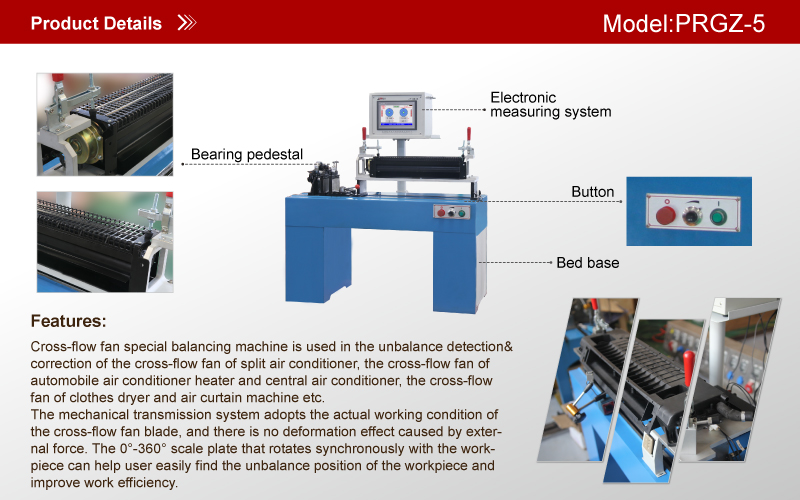

PRGZ-5 Self Drive Cross Flow Fan Balancing Machine
| Technical data at a glance | PRGZ-5 |
| Max Mass of Workpiece (kg) | 5 |
| Min Achievable Residual Unbalance Amount (emar) | 0.15g· mm/kg |
