Differential Case Automatic Loading&Unloading Balancer
Describir Parámetro Foto Vídeo Descargar Cotización
Application

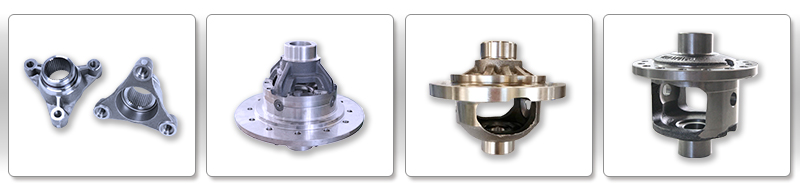

It is used for the automatic unbalance correction of automobile differential cases. It adopts Shanghai Jianping dynamic balancing machine technology. The disc-shaped workpiece is fully automated from unbalance measurement, angle positioning, milling weight removal to retest; it has features of high speed and high precision, suitable for mass production of various differential cases.
Feature
1.Touch-screen HMI, powerful functions and convenient operation;
2.Measurement-correction-retest, the whole process is completed automatically.
3.Can integrate with robot arm and assembly line.
Automatic Vertical Balancing Correction Machine
| Data Rotors | A1LX20-5-200 | A1LX20-35-400 | A1LX20-150-600 |
| Max Mass of Workpiece(kg) | 5 | 35 | 150 |
| Max Diameter of Workpiece (mm) | 200 | 400 | 600-750 |
| Spindle Speed (r/min) | 800 | 800 | 800 |
| Motor Power(kw) | 1 | 3 | 11-15 |
| Min Achievable Residual Unbalance Amount (emar) | 3g· mm/kg | 3g· mm/kg | 3g· mm/kg |
| Working Pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
| Operating Voltage | AC:380V External | AC:380V External | AC:380V External |
| Thickness of Workpiece Weight Removal | 8-110mm | 8-110mm | 8-110mm |
| Milling Angle(degree) | 90-75 | 90-75 | 90-75 |
| Power(kw) | 5 | 8.5 | 20 |
| Milling Motor Power(kw) | 1.5 | 3 | 7.5 |
| Unbalance Reduction Rate | ≥90% | ≥90% | ≥90% |
| Processing Period(s) | 6-10 | 8-12 | 15-20 |
| Weight(ton) | 1.8 | 1.8 | 2 |
| Dimensions(mm) | 900*2300*2030 | 900*2300*2030 | 900*2300*2030 |
| Protection | Phase sequence protection. Overload protection. Pressure detection | ||
