Differential Case Vertical Milling Automatic Balancer
Describir Parámetro Foto Vídeo Descargar Cotización
Application

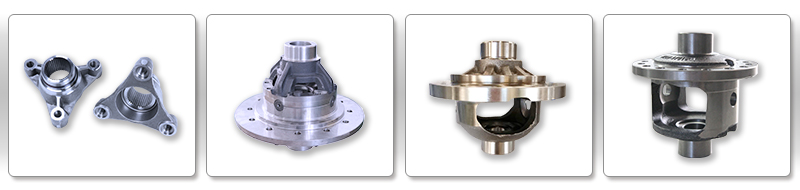

It is used for the automatic unbalance correction of automobile differential cases. It adopts Shanghai Jianping dynamic balancing machine technology. The disc-shaped workpiece is fully automated from unbalance measurement, angle positioning, milling weight removal to retest; it has features of high speed and high precision, suitable for mass production of disc-shaped workpieces.
Features
1.Manual loading & unloading
2.15 inch touch screen
3.Advanced balancing measurement software technology
4.Automatic measurement, automatic drilling & correction, automatic retest
5.Ergonomic structure design, high machine use efficiency
Automatic Vertical Balancing Correction Machine
| Technical data at a glance | A1LX20-5-200 | A1LX20-35-400 | A1LX20-150-600 |
| Max Mass of Workpiece(kg) | 5 | 35 | 150 |
| Max Diameter of Workpiece (mm) | 200 | 400 | 600-750 |
| Spindle Speed (r/min) | 800 | 800 | 800 |
| Motor Power(kw) | 1 | 3 | 11-15 |
| Min Achievable Residual Unbalance Amount (emar) | 3g· mm/kg | 3g· mm/kg | 3g· mm/kg |
| Working Pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
| Operating Voltage | AC:380V External | AC:380V External | AC:380V External |
| Thickness of Workpiece Weight Removal | 8-110mm | 8-110mm | 8-110mm |
| Milling Angle(degree) | 90-75 | 90-75 | 90-75 |
| Power(kw) | 5 | 8.5 | 20 |
| Milling Motor Power(kw) | 1.5 | 3 | 7.5 |
| Unbalance Reduction Rate | ≥90% | ≥90% | ≥90% |
| Processing Period(s) | 6-10 | 8-12 | 15-20 |
| Weight(ton) | 1.8 | 1.8 | 2 |
| Dimensions(mm) | 900*2300*2030 | 900*2300*2030 | 900*2300*2030 |
| Protection | Phase sequence protection. Overload protection. Pressure detection | ||
